A Ripley cable preparation tool kit is a set of matched hand tools for stripping the jacket, scoring the semi-con and trimming the insulation on medium and high voltage power cable, packed in a canvas bag. The UA01 series kits are made for EPR and XLPE insulated cable, and they let a crew prepare a splice or termination with the tools they need already together.
Ripley makes cable prep kits for most medium voltage jobs, from a lean stripper and scorer set to a full termination kit in a hard case. Pick by the cable you work on and the extra tools you need. The comparison below covers eight kits.
The tools in the UA01 kits each handle one layer of the cable:
Buying a kit means a crew gets a matched set for jacket stripping, semi-con scoring and insulation chamfering, with tools designed to limit the risk of nicking the conductor. It also means one part number to order and one bag to put on the truck, instead of building a set tool by tool.
Start with your cable size and what you need beyond stripping and scoring. All kits are for medium voltage cable unless noted, and the UA01 kits come in a canvas bag unless noted.
The Ripley Cable Jointer's Kit is a complete kit for termination prep on 10 to 35 kV cable with diameters from 0.39 in. (10 mm) to 2.36 in. (60 mm). It works on PE, XLPE, PVC, EPR, silicone rubber, EPDM and TGGT insulation, and it comes in a rugged hard case with precision-cut foam.
There are two versions. The UA01-7085 has metric scales, and the UA01-7092 has imperial tools and KS-1 shears. Each kit has a jacket scorer, jacket lifter, semi-con shaver, semi-con scorer, stripper with stop bar, insulation chamfer tool, ratcheting slitter, flat nose and needle nose pliers, and a hex key set.
The blades are shielded, so the kit helps crews work without exposed blades. The adjustable tools cover a range of cable sizes and jacket thicknesses, and the hex key set and included replacement blades cover blade changes. The case measures 24 x 24 x 8 in. and weighs 15 lb. Some tools can be swapped, such as metric for inch scales or a different style of pliers. Ask us for details.
The Ripley UA01-7059 MV Cable Prep Kit is the larger diameter kit in the lineup. It removes the jacket, semi-con layer and EPR or XLPE insulation from medium voltage cable up to 1000 kcmil.
The bag holds five items:
The Ripley UA01-7038 MV Cable Prep Kit is a medium voltage kit that adds a chamfer tool and a probe insertion tool for torquing to the usual stripping and scoring tools. It prepares EPR and XLPE insulated cable by removing the jacket, semi-con layer and insulation without damaging the conductor.
The bag holds seven items:
The Ripley UA01-7055 MV Cable Prep Kit pairs the usual stripping and scoring tools with a load break insertion tool and a probe insertion tool. It prepares EPR and XLPE insulated medium voltage cable by removing the jacket, semi-con layer and insulation without damaging the conductor.
The bag holds seven items:
The Ripley MV Underground Tool Kit is an all-in-one kit for preparing 15 to 35 kV underground cable from 0.39 in. (10 mm) to 2.36 in. (60 mm) in diameter. It works on PE, XLPE, PVC, EPR, silicone rubber, EPDM and TGGT insulation, and includes custom foam and replacement blades. Every version has a large-format cable slitter, a jacket lift tool, a URD insulation chamfering tool, two clamps and an SCS semi-con scoring tool.
It comes in four versions, and the case measures 24 x 24 x 8 in. and weighs 15 lb:
They are made for EPR and XLPE insulated medium and high voltage power cable.

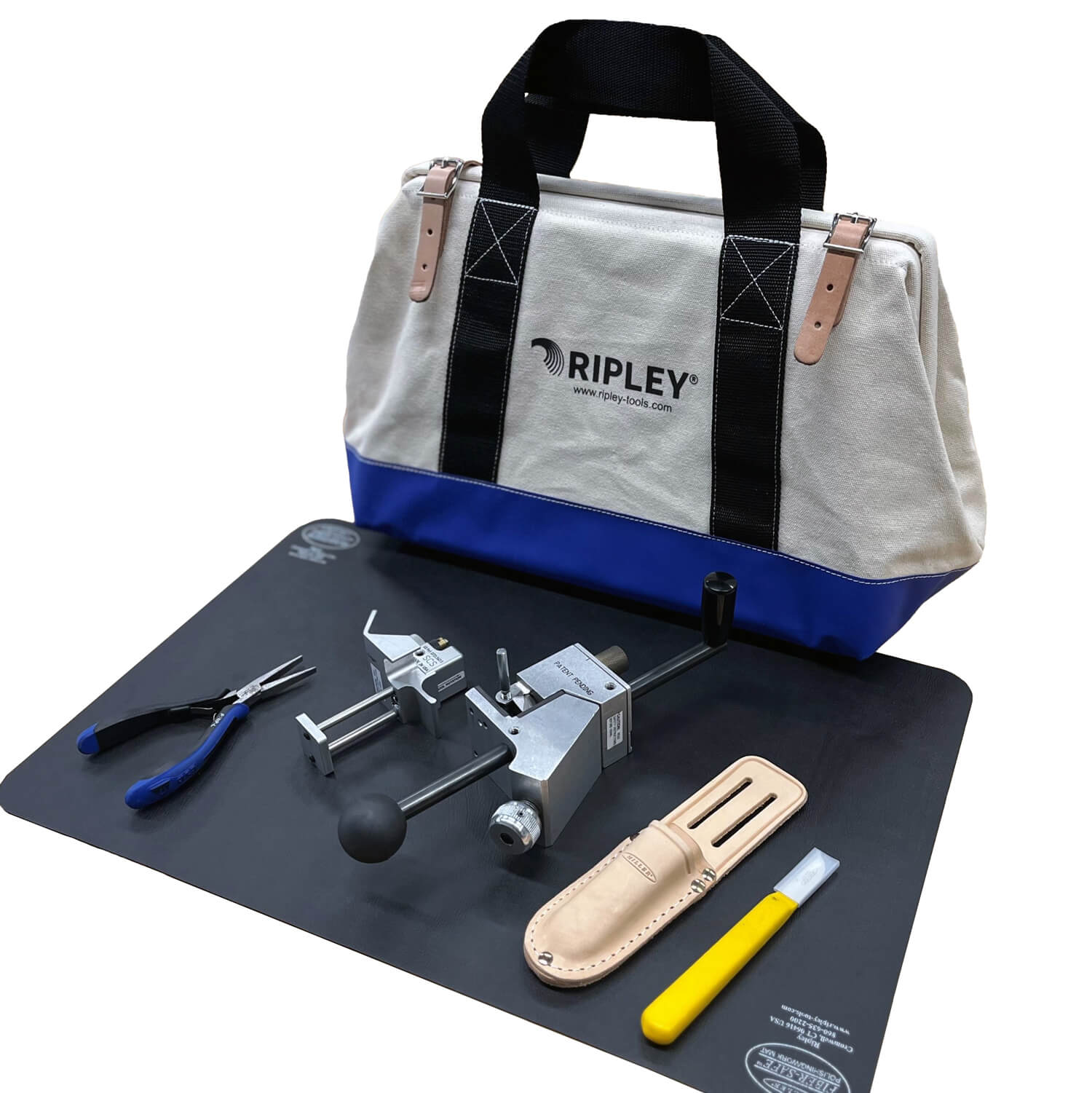

The US01-7200 adjustable cable stripper, an SCS semi-con scorer, a CK-6 cable knife with holster, RFNP-L flat nose pliers and a canvas bag.
The UA01-7053 has the stripper and the scorer. The UA01-7054 adds the knife and pliers. The UA01-7058 has the stripper, knife and pliers without the scorer.
It is an adjustable stripper that removes the sheath and XLPE insulation, either mid-span or at the cable end.
It cuts a controlled line through the semi-conductive layer so it can be peeled back without cutting into the insulation underneath.
Yes. The stripper, scorer, knife and pliers are Ripley tools you can order on their own, and we can help you build a custom set.
The UA01 kits come in a Ripley canvas bag (UA01-6507) with separate internal pockets. The Cable Jointer's Kit comes in a hard case.
The UA01-7085 includes a jacket scorer, jacket lifter, semi-con shaver, semi-con scorer, stripper with stop bar, insulation chamfer tool, ratcheting slitter, flat nose and needle nose pliers, and a hex key set, in a hard case.
It is for termination prep on 10 to 35 kV cable, 0.39 to 2.36 in. in diameter, with PE, XLPE, PVC, EPR, silicone rubber, EPDM or TGGT insulation.
Yes. The UA01-7092 has imperial tools and KS-1 shears in place of the metric items.
The UA01-7059 handles medium voltage cable up to 1000 kcmil with EPR or XLPE insulation.
A WS50 jacket and insulation stripper, an SCS semi-con scorer, a CK-6 knife with holster, RFNP-L flat nose pliers and a canvas bag.
The UA01-7038 includes a 30 degree insulation chamfer tool (US10-7000) and a PIT-1T probe insertion tool for torquing, along with the stripper, scorer, knife, pliers and a canvas bag.
The UA01-7055 includes a load break insertion tool (35900) and a probe insertion tool (35150), along with the stripper, scorer, knife, pliers and a canvas bag.
The MV Underground Tool Kit, in versions UA01-7069, UA01-7066, UA01-7081 and UA01-7082, handles cable from 0.39 to 2.36 in. in diameter, with or without Kevlar shears and a URD canvas bag.
