Reliable electrical grounding is essential for utility safety, equipment protection, and power system reliability. However, traditional grounding systems can face challenges such as soil conditions, corrosion, theft of grounding conductors, difficult installations, and the long-term maintenance of buried infrastructure.
The SAE CONDU family of grounding products offers innovative solutions designed to address these challenges. Manufactured by SAE Inc., the CONDU product line includes grounding electrodes, conductive backfill materials, and specialized grounding conductors designed to improve grounding performance and extend system service life.
From utility poles and pad-mounted transformers to substations, transmission structures, and challenging rock installations, SAE's CONDU products provide alternatives to conventional grounding methods.
Powertech Associates and Utility Power Supply Company support the electrical utility industry with grounding products designed to address the practical challenges utilities encounter in the field.
SAE CONDU products are specialized electrical grounding solutions designed to improve grounding performance, reduce corrosion-related failures, and address difficult installation conditions.
The product family includes several complementary technologies:
Each product addresses a different grounding challenge. Rather than relying on a single electrode or material for every installation, utilities can select the appropriate CONDU solution based on soil conditions, available installation space, corrosion exposure, and grounding performance requirements.
Grounding systems help provide a path for fault current and lightning-related surges while supporting the safe operation of electrical infrastructure.
A properly designed grounding system helps protect personnel, equipment, and the surrounding electrical network. When grounding performance deteriorates, utilities may face increased maintenance requirements, equipment reliability concerns, and potential safety risks.
Traditional grounding systems can encounter several challenges.
Metal grounding electrodes and conductors can deteriorate in corrosive soils and other aggressive environments. As grounding components corrode, their ability to perform as intended over the life of the installation may be compromised.
Rocky terrain, shallow bedrock, limited burial depth, and high-resistivity soils can make it difficult to install conventional grounding electrodes or achieve the required grounding performance.
Exposed or accessible copper grounding conductors can be vulnerable to theft. Replacing stolen conductors increases maintenance costs and can compromise the integrity of a grounding system.
Traditional grounding installations may require extensive excavation, driving ground rods, handling powdered materials, or returning to sites to repair deteriorated components.
SAE's CONDU product family addresses these challenges through alternative electrode designs, conductive backfill technologies, and corrosion-resistant grounding components.
The following overview explains the primary function of each product and the applications where it may be appropriate.
| Product | Primary Function | Typical Applications |
|---|---|---|
| ConduDisc | Conductive grounding plate | Utility poles and general grounding applications |
| ConduCrete | Conductive ground enhancement material | Utility grounding systems, substations, and grounding installations requiring enhanced backfill |
| ConduRod | Conductive grounding rod with increased surface area | Utility poles and installations where conventional ground rods struggle to meet resistance targets |
| ConduWire | Corrosion-resistant grounding conductor | Grounding systems exposed to corrosive environments or conductor theft |
| ConduFlow | Pourable conductive backfill that solidifies | Utility poles, pad-mounted transformers, towers, and installations where traditional backfill is unsuitable |
| ConduForm | Formable conductive backfill that solidifies | Shallow installations, exposed bedrock, and locations where trenching is difficult |
| ConduMarine | Submersible grounding electrode | Utility structures where grounding must take place in a body of water |
The correct product depends on the grounding design, soil resistivity, available space, installation conditions, and applicable electrical requirements. SAE also provides technical resources to support product selection.

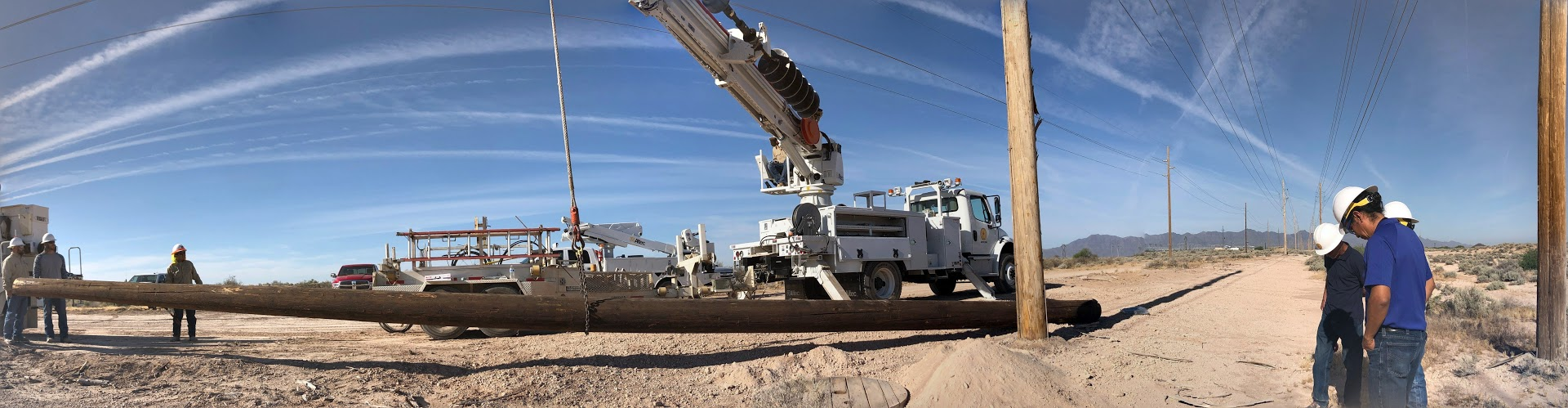

ConduDisc is a conductive grounding plate designed to improve grounding performance while addressing the corrosion and maintenance challenges associated with traditional grounding electrodes.
Unlike a conventional driven ground rod, ConduDisc uses a conductively encased galvanized metal plate to provide a grounding electrode with a larger surface area.
SAE identifies several benefits, including improved grounding performance, reduced installation time, and protection against electrode corrosion.
SAE also offers specialized versions, including ConduDisc Elite and ConduDisc Flex, to address additional installation requirements.
ConduDisc Elite combines a corrosion-resistant grounding plate with a conductive jacketed wire. ConduDisc Flex is designed for applications requiring flexibility in conductor and connector sizes.
When should a utility consider ConduDisc? ConduDisc may be worth evaluating when conventional ground rods are difficult to install, grounding resistance targets are challenging to achieve, or corrosion-related deterioration is a concern.
The suitability of any electrode should be confirmed through the grounding design and site-specific requirements.
ConduCrete is a conductive cementitious and carbonaceous ground enhancement material designed to improve grounding performance and protect grounding system components.
Ground enhancement materials are used in grounding installations where the surrounding soil or backfill may not provide the electrical characteristics required by the grounding design.
ConduCrete provides a conductive medium around grounding components while helping protect them against corrosion and other forms of deterioration.
ConduCrete is particularly relevant for utility installations where maintaining grounding performance over the life of the asset is important.
SAE also offers ConduCrete Pro and ConduCrete CP configurations. The appropriate formulation should be selected according to the intended application and product specifications.
When should a utility consider ConduCrete? Consider ConduCrete when a grounding design calls for conductive backfill to improve electrode-to-ground contact, address challenging soil conditions, or provide additional corrosion protection.
The required quantity and installation method depend on the grounding design and the manufacturer's instructions.
ConduRod is a conductively molded grounding rod designed to increase electrode surface area and improve grounding performance.
Traditional ground rods can present installation challenges in rocky terrain, areas with buried infrastructure, or locations where the required grounding resistance is difficult to achieve.
ConduRod offers an alternative electrode design intended to address these concerns.
When should a utility consider ConduRod? ConduRod may be appropriate when conventional ground rods fail to meet resistance targets, corrosion is a concern, or driving rods presents risks because of buried infrastructure or site conditions.
Its suitability should be evaluated against the required grounding resistance and the physical conditions of the installation.
ConduWire is a grounding wire with an extruded conductive coating designed to reduce corrosion and extend the service life of grounding systems.
Traditional grounding conductors can deteriorate in corrosive environments. In addition, exposed or accessible copper conductors may be vulnerable to theft.
ConduWire is designed to address both challenges while maintaining flexibility similar to bare wire.
When should a utility consider ConduWire? ConduWire is worth evaluating for grounding installations exposed to corrosive soil conditions or where copper conductor theft creates recurring maintenance problems.
The conductor must be installed in accordance with the manufacturer's requirements and the grounding system's electrical design.
ConduFlow is a pourable conductive carbonaceous polymer backfill that cures into a solid, providing conductive grounding enhancement and protection for grounding components.
Traditional grounding backfill materials can create challenges during handling and installation, particularly when powdered materials generate dust or when the finished installation requires additional protection against corrosion and theft.
ConduFlow provides an alternative installation approach.
SAE identifies ConduFlow for applications including:
When should a utility consider ConduFlow? ConduFlow may be appropriate when a grounding installation requires conductive backfill that can be poured into place and solidifies to provide additional protection.
It can be especially useful when installation conditions make conventional backfill methods less desirable.
ConduForm is a formable conductive carbonaceous backfill designed for grounding applications where conventional excavation or vertical electrode installation is difficult.
Unlike traditional backfill that remains loose, ConduForm is installed as a liquid and cures into a solid.
Its formable characteristics make it particularly useful in locations with shallow bedrock or little available soil cover.
ConduForm is particularly relevant for utilities working in rocky terrain, areas with shallow soil, or sites where excavation is restricted.
For example, a utility installing grounding on exposed bedrock may not have enough soil depth to accommodate a conventional grounding arrangement. A formable conductive backfill can provide an alternative installation method when supported by the grounding design.
As with other grounding enhancement materials, the finished installation must meet the project's electrical and mechanical requirements.
ConduMarine is a specialized submersible grounding electrode designed for locations where a nearby body of water provides the only viable grounding option for a utility structure.
Some utility installations have geographic or geological constraints that make conventional land-based grounding impractical.
ConduMarine addresses these situations with a purpose-built electrode.
When should a utility consider ConduMarine? ConduMarine is intended for specialized applications where all grounding must take place in a body of water.
Its use requires careful consideration of site conditions, electrical requirements, environmental constraints, and applicable grounding standards.
The best grounding solution depends on the specific problem the utility needs to solve. The following guide provides a starting point for evaluating the CONDU product family.
| Grounding Challenge | Product to Evaluate | Why |
|---|---|---|
| Conventional ground rods are difficult to install or underperform | ConduDisc or ConduRod | Alternative electrode designs |
| Corrosion is shortening the life of grounding electrodes | ConduDisc or ConduRod | Conductive protective construction |
| Conductors are deteriorating in corrosive environments | ConduWire | Conductive corrosion-resistant coating |
| A grounding design requires conductive backfill | ConduCrete | Conductive ground enhancement material |
| Pourable backfill is preferred over traditional powdered materials | ConduFlow | Pourable material that cures into a solid |
| Bedrock or shallow soil limits excavation | ConduForm | Formable conductive backfill for challenging terrain |
| A utility structure must be grounded in a body of water | ConduMarine | Specialized submersible grounding electrode |
These products are not necessarily interchangeable. The appropriate choice depends on the grounding system's design, site conditions, and required electrical performance.
SAE also offers technical resources, installation instructions, specification documents, and engineering services to support the selection process.
The principal advantage of the CONDU family is that it provides several different approaches to grounding rather than relying exclusively on conventional ground rods and backfill methods.
Several CONDU products are designed to improve grounding performance through increased electrode surface area, conductive backfill, or enhanced contact with the surrounding ground.
The results depend on the complete grounding design and local soil conditions.
Corrosion can compromise grounding components over time. SAE's product family includes conductive protective coatings, molded electrodes, and backfill materials intended to reduce corrosion-related deterioration.
Protecting grounding components from corrosion and physical damage can help reduce the need for replacement.
SAE advertises substantial service-life improvements for certain CONDU grounding solutions compared with traditional systems. Actual service life depends on the product, installation, and environmental conditions.
Different CONDU products address different site constraints, including shallow bedrock, restricted excavation, and locations where conventional ground rods are difficult to install.
Installation labor, replacement frequency, maintenance visits, and material costs all contribute to the total cost of a grounding system.
A solution that reduces corrosion or simplifies installation may provide lifecycle cost benefits, even if the initial material cost differs from that of a conventional grounding system.
Utilities should compare the full installed and maintained cost of each option rather than considering purchase price alone.
SAE publishes product-specific approvals, certifications, and technical documentation for its grounding solutions.
For example, SAE identifies ConduDisc as Rural Utilities Service (RUS) approved. Its published ConduCrete information also identifies RUS approval and NSF/ANSI/CAN 60 certification for applicable products.
However, approvals and certifications vary by product and configuration. They should not be assumed to apply to every item in the CONDU family.
Before specifying a product, verify the current documentation for the exact model and intended application. The grounding system must also meet applicable electrical codes, utility standards, and engineering requirements.
The SAE CONDU family is a range of specialized grounding products designed to improve grounding performance, reduce corrosion, and address challenging installation conditions. Products include ConduDisc, ConduCrete, ConduRod, ConduWire, ConduFlow, ConduForm, and ConduMarine.
ConduDisc is a conductive grounding plate, while ConduRod is a conductively molded grounding rod with increased surface area. Both are designed to improve grounding performance and address corrosion-related issues, but their form factors and installation methods differ.
ConduFlow is a pourable conductive backfill that solidifies after installation. ConduForm is a formable conductive backfill designed for applications such as shallow bedrock and exposed rock where conventional excavation may be difficult.
The choice depends on the installation geometry, site conditions, and manufacturer's application requirements.
ConduWire is a grounding conductor with a conductive protective coating designed to reduce corrosion and help protect against conductor theft. It is intended for grounding systems where long-term conductor reliability is important.
Yes. Several products in the family are designed for utility grounding applications, including ConduDisc, ConduRod, ConduWire, ConduCrete, and ConduFlow. The appropriate product depends on the grounding design and site conditions.
ConduForm is specifically designed for shallow-bedrock and exposed-rock applications where conventional trenching may not be practical. ConduFlow may also be relevant for certain installations, depending on the site and grounding design.
The products are designed to reduce certain corrosion, installation, and replacement challenges. However, no grounding product should be assumed to eliminate all inspection or maintenance requirements. Utilities should follow their applicable maintenance procedures and manufacturer recommendations.
Start by identifying the grounding challenge, soil conditions, installation constraints, and required grounding performance. Then consult the manufacturer's technical documentation and, where necessary, an experienced grounding engineer.
Powertech Associates and Utility Power Supply Company support electric utilities and electrical infrastructure customers with grounding products and solutions from SAE Inc.
Whether you are evaluating a replacement for conventional ground rods, looking for conductive backfill, addressing grounding conductor corrosion, or planning an installation in challenging terrain, the SAE CONDU family offers multiple solutions to consider.
Our online store carries ConduDisc, ConduCrete Conductive Backfill, and ConduFlow Pourable Backfill. You can browse the full SAE Inc. category in our store.
For help identifying the appropriate product for your application, or for other CONDU products, contact Powertech Associates.
Explore the full product family: SAE Electrical Grounding Products.
